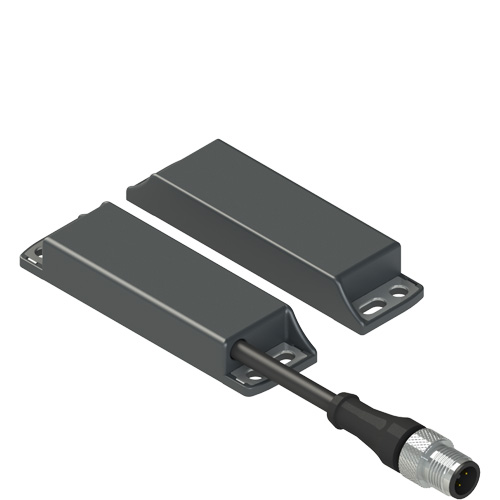

SR BD41AM0.1-B02F | Magnetic safety sensor completes with actuator PVC cable, length 0.1 m with M12 connector, 4 poles Actuator: Actuation distance 5 mm

SR BD41AM0.1-B02F | Magnetic safety sensor completes with actuator PVC cable, length 0.1 m with M12 connector, 4 poles Actuator: Actuation distance 5 mm

1. Product Overview
   The SR BD41AM0.1-B02F is a magnetic safety sensor that comes complete with an actuator. It features a 0.1 m PVC cable with an M12, 4-pole connector for easy installation and a compact design optimized for safety applications.
2. Purpose and Function
   This sensor ensures the safe operation of machinery and equipment by monitoring safety doors, guards, or movable parts. It detects the presence of the actuator using magnetic fields and prevents machine operation when safety barriers are not engaged.
3. Key Features
   • Non-Contact Magnetic Detection: Eliminates mechanical wear and enhances durability.
   • Compact Actuation Distance: Reliable detection at 5 mm.
   • M12 Connector: Simplifies connection and installation with a standard 4-pole interface.
   • Short PVC Cable (0.1 m): Flexible and easy to integrate into control systems.
4. Technical Specifications
   • Actuation Distance: 5 mm for consistent and precise detection.
   • Cable: 0.1 m PVC cable with M12, 4-pole connector.
   • Contact Configuration: 2 NO (Normally Open) safety outputs.
   • Protection Level: IP67 for dust and water resistance.
5. Operating Characteristics
   • Non-Contact Technology: Reduces mechanical wear and ensures long service life.
   • High Reliability: Immediate response to actuation for safety-critical applications.
   • Compact and Durable: Designed to operate efficiently in confined and industrial environments.
6. Industry Applications
   The SR BD41AM0.1-B02F is ideal for:
   • Manufacturing Lines: Ensuring safety guard monitoring.
   • Packaging Machines: Preventing operation during open access points.
   • Automated Systems: Protecting robotic and conveyor operations.
   • Machine Tools: Detecting safety cover positions.
7. Installation
   • Equipped with a prewired 0.1 m PVC cable and an M12, 4-pole connector for quick plug-and-play integration.
   • Compact dimensions and 5 mm actuation distance allow for flexible placement in limited spaces.
   • Suitable for mounting on doors, guards, and movable parts.
8. Benefits
   • Improved Safety: Ensures machines are inactive unless safety barriers are secured.
   • Durable Design: IP67-rated for operation in harsh conditions.
   • Simplified Connectivity: M12 connector enables hassle-free integration.
   • Non-Contact Operation: Prolongs lifespan with friction-free sensing.
