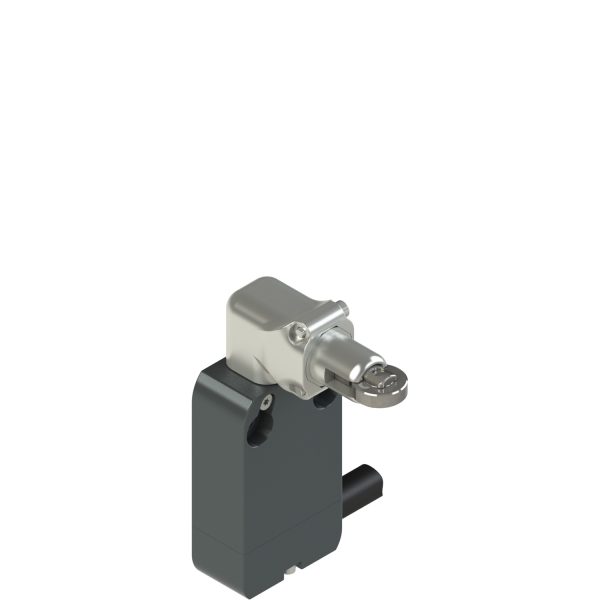

NA B220BB-DN2HOW5 | Modular prewired switch with roller plunger 90° transmission block

NA B220BB-DN2HOW5 | Modular prewired switch with roller plunger 90° transmission block

1. Product Overview
   The NA B220BB-DN2HOW5 is a modular prewired switch featuring a roller plunger with a 90° transmission block. This design allows precise mechanical switching while offering adaptability in confined or angular installation environments.
2. Purpose and Function
   This switch is engineered for applications requiring accurate mechanical detection, with the roller plunger and 90° transmission block enabling force redirection for space-saving installation.
3. Key Features
   • Modular Prewired Design: Simplifies installation, reducing labor and setup time.
   • Roller Plunger: Ensures smooth actuation with minimal wear.
   • 90° Transmission Block: Redirects actuation forces for flexible positioning.
   • NO+NC Configuration: Provides versatile contact operation.
4. Electrical Ratings
   • Contact Configuration: 1NO+1NC (Normally Open + Normally Closed).
   • Voltage Rating: Up to 250V AC.
   • Current Rating: Supports up to 10A.
5. Operating Characteristics
   • Space Optimization: The 90° transmission block enables installation in tight or angular spaces.
   • Smooth Switching: Roller plunger ensures frictionless, reliable actuation.
   • Durability: High mechanical endurance for repetitive operations.
6. Industry Applications
   Ideal for applications such as:
   • Conveyor Systems
   • Packaging Machines
   • Control Panels
   • Industrial Automation Systems
7. Installation
   • Prewired design minimizes setup time and potential wiring errors.
   • Compact construction with a 90° transmission block simplifies mounting in space-restricted environments.
   • Standardized mounting options ensure system compatibility.
8. Benefits
   • Flexible Installation: The 90° design enables adaptable and space-efficient mounting.
   • Smooth Operation: Roller plunger minimizes wear, ensuring long service life.
   • Simplified Wiring: Prewired modular design accelerates setup and reduces errors.
   • Reliable Switching: Consistent NO+NC contact performance for critical control applications.
